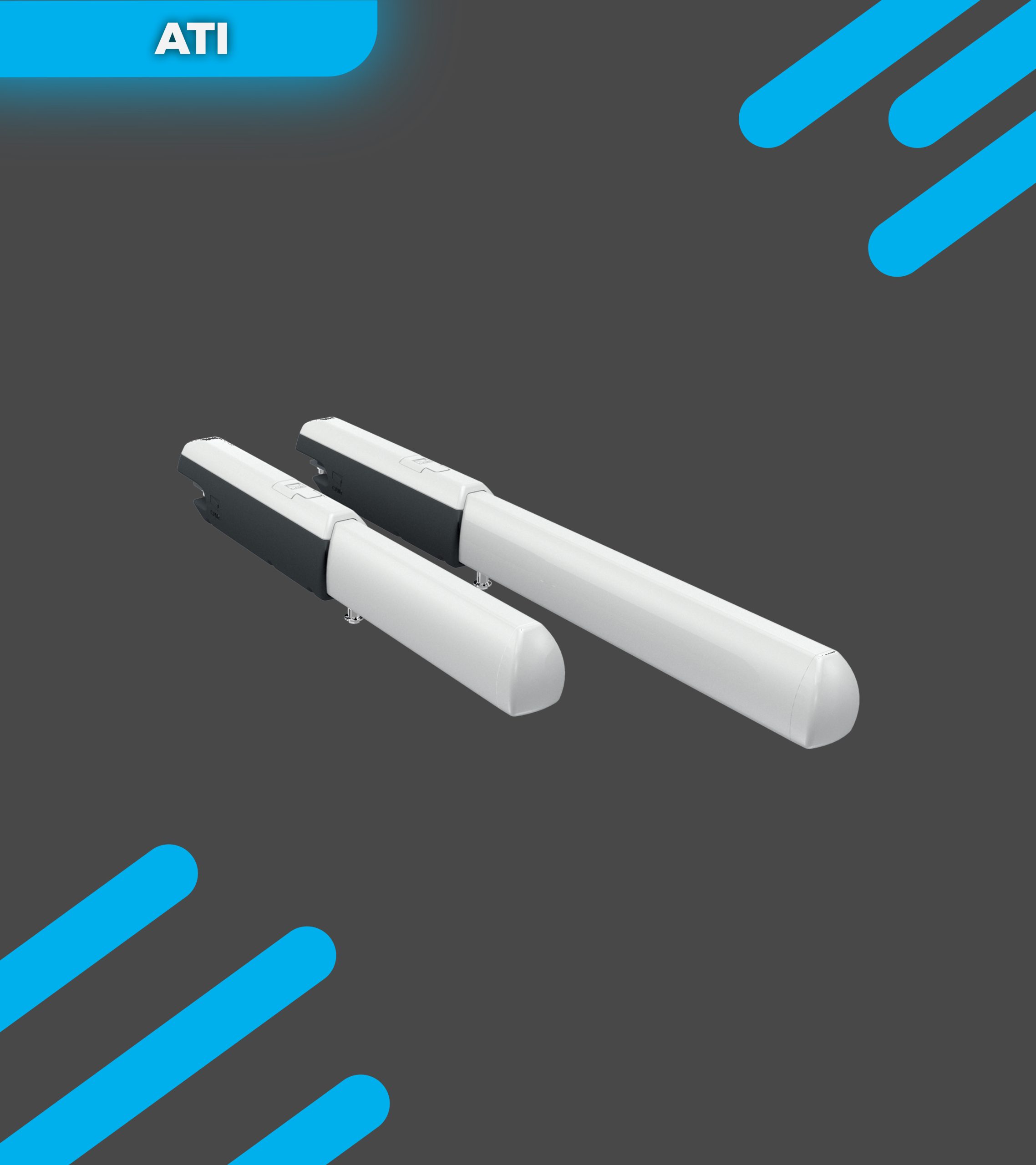

ATI
• گیربکس غیر قابل برگشت.
• تشخیص انسداد آمپرومتریک.
• مدیریت موتور و انکودر با کابل سه سیم داخل نسخه های 24 ولت DC.
• آماده بهره برداری در صورت قطع برق در 24 ولت DC نسخه ها
C MAX.
USE
MAXIMUM LEAF WEIGHT
MAXIMUM LEAF LENGTH
120 mm SECTION
INTENSIVE DUTY
UP TO 1000 kg
UP TO 5 m
اسلاید قبلی
اسلاید بعدی
Operational limits
| MODEL | A3000 | A3000A | A3024N |
|---|---|---|---|
| Max. width of leaf (m) | 3 | 2.5 | 2 |
| Max. weight of leaf (kg) | 400 | 600 | 800 |
| Max. leaf opening (°) | 120 |
| MODEL | A5000 | A5000A | A5024N | ||
|---|---|---|---|---|---|
| Max. width of leaf (m) | *5 | *4 | 3 | 2.5 | 2 |
| Max. weight of leaf (kg) | 400 | 500 | 600 | 800 | 1000 |
| Max. leaf opening (°) | 120 |
Application dimensions (mm)
| MODEL | A3000 | A3000A | A3024N |
|---|---|---|---|
| LEAF OPENING (°) | A | B | C max |
| 90 | 130 | 130 | 60 |
| 120 | 130 | 110 | 50 |
| MODEL | A5000 | A5000A | A5024N |
|---|---|---|---|
| LEAF OPENING (°) | A | B | C max |
| 90 | 200 | 220 | 120 |
| 120 | 220 | 140 | 70 |
Technical characteristics
| MODELS | A3000 | A3000A | A5000 | A5000A | A3024N | A5024N |
|---|---|---|---|---|---|---|
| 44 | 44 | 44 | 44 | 44 | 44 | |
| Power supply to motor (V) | 230 AC 50/60 Hz | 230 AC 50/60 Hz | 230 AC 50/60 Hz | 230 AC 50/60 Hz | 24 DC | 24 DC |
| Absorption (A) | 1.2 | 1.2 | 1.2 | 1.2 | 10 Max. | 10 Max. |
| Power (W) | 260 | 260 | 260 | 120 | 120 | |
| Maneuvering time at 90° (s) | 19 ÷ 25 | 19 ÷ 25 | 30 ÷ 40 | 30 ÷ 40 | ADJUSTABLE | ADJUSTABLE |
| Cycles/Hour | 24 | 24 | 15 | 15 | HEAVY-DUTY SERVICE | HEAVY-DUTY SERVICE |
| Thrust (N) | 400 ÷ 4000 | 400 ÷ 4000 | 400 ÷ 4000 | 400 ÷ 4000 | 400 ÷ 4000 | 400 ÷ 4000 |
| Operating temperature (°C) | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 | -20 ÷ +55 |
| Motor’s heat protection (°C) | 150 | 150 | 150 | 150 | - | - |
• 230 V AC
• 24 V DC
